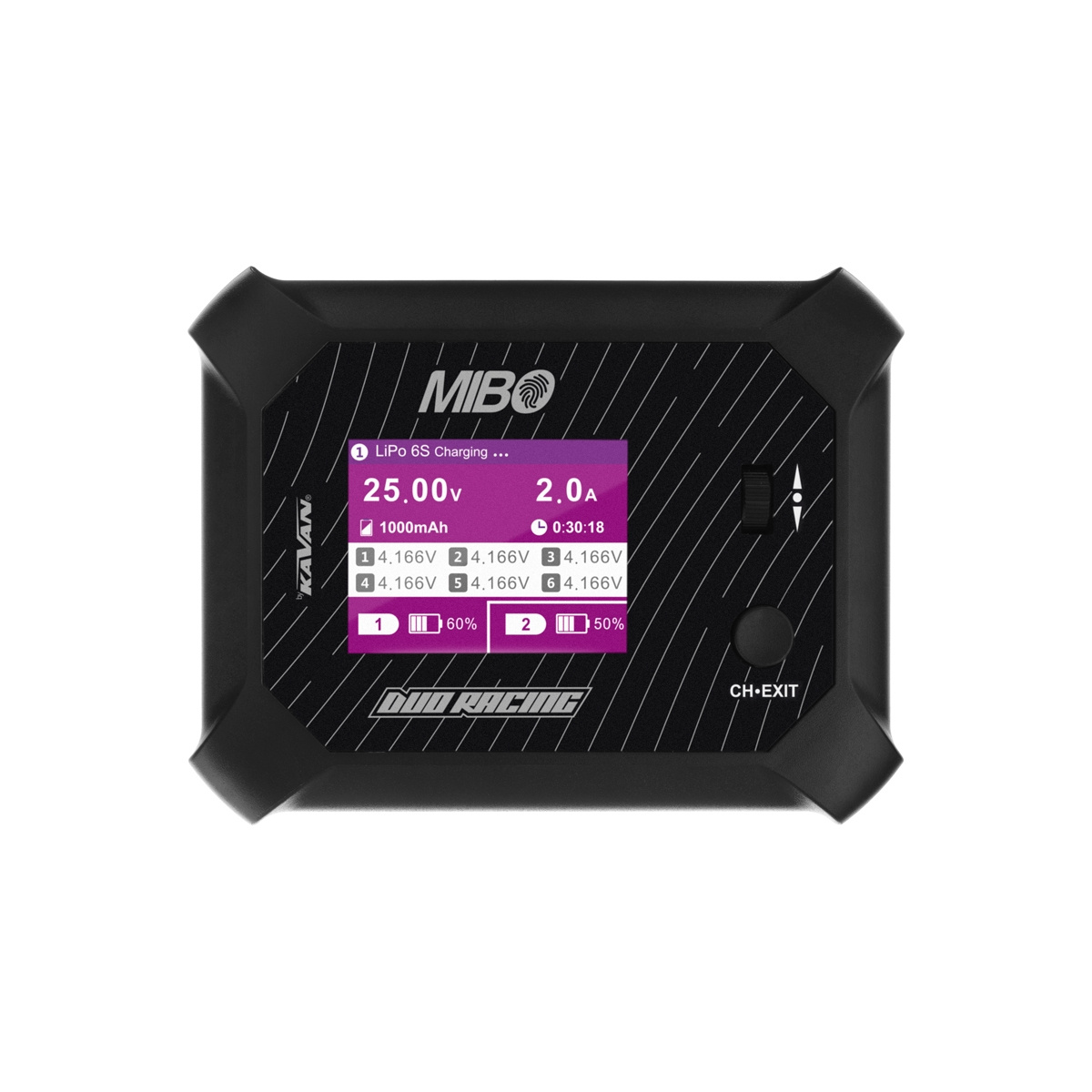

MIBO Duo Racing AC/DC 200W cargador/Discharger/Power Supply

The small dual-channel MIBO Duo Racing AC/DC 200W Charger/Discharger is an intelligent charger with mains and car battery power supply and very simple and straightforward operation. The MIBO Duo Racing AC/DC 200W Charger/Discharger allows you to charge common battery types (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Lead-acid), plus it is equipped with built-in six-channel balancers to ensure safe charging of lithium batteries. The charger is equipped with a colour LCD display and a programming wheel and button, which provide you with the possibility of comfortable and fast parameter setting, control and monitoring of the charging process.

In addition to the compact «palm-sized» design and intuitive operation, it is worth a special mention:

• program for new types of high-voltage LiHV batteries with a terminal voltage for charging up to 4.35 V
• the possibility of synchronous operation of both channels for charging two identical batteries
• adjustable charging end voltage for lithium batteries (allows the gentle charging that aviators like, or the brutal overcharging that «car guys» like)

Overview of Basic Functions and Parameters:

• Mains power supply 100–240V/50–60Hz
• 10–30 VDC power supply (XT60 socket)
• For charging 1–16 NiCd/NiMH cells, 1–6S Li-ion/Li-poly/Li-Fe/LiHV or 2–24V Lead-acid batteries
• Adjustable charging current (0.1–10.0A) in each channel (max. 100W total with mains power, max. 2x100W with car battery or powerful stabilised power supply)
• When mains power is applied, it allows channels A and B to be allocated the available power (max. 100W total) in a 100:0, 50:50, 0:100 ratio
• Charge termination by delta-peak automation for NiCd and NiMH batteries
• Lithium and Lead-acid batteries are charged using the «constant current/constant voltage» method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable charging end voltage for lithium batteries
• Charging mode allows charging lithium batteries with or without a balancer.
• With mains power, the charger can also be used as a stabilised DC power supply of 17.5V/max. 100W.
• Easy firmware update via micro USB port
• Backlit colour LCD with a simple and clear menu and parameter display during charging
• Programming wheel/button and button for easy and clear charger setup and control, multilingual menu (including English)
• Several warning messages contribute to safe operation – incorrect input voltage, incorrect wiring, unsuitable battery or its condition, incorrect polarity at the output, etc.
• Forced cooling fan.
• Compact plastic case, small dimensions

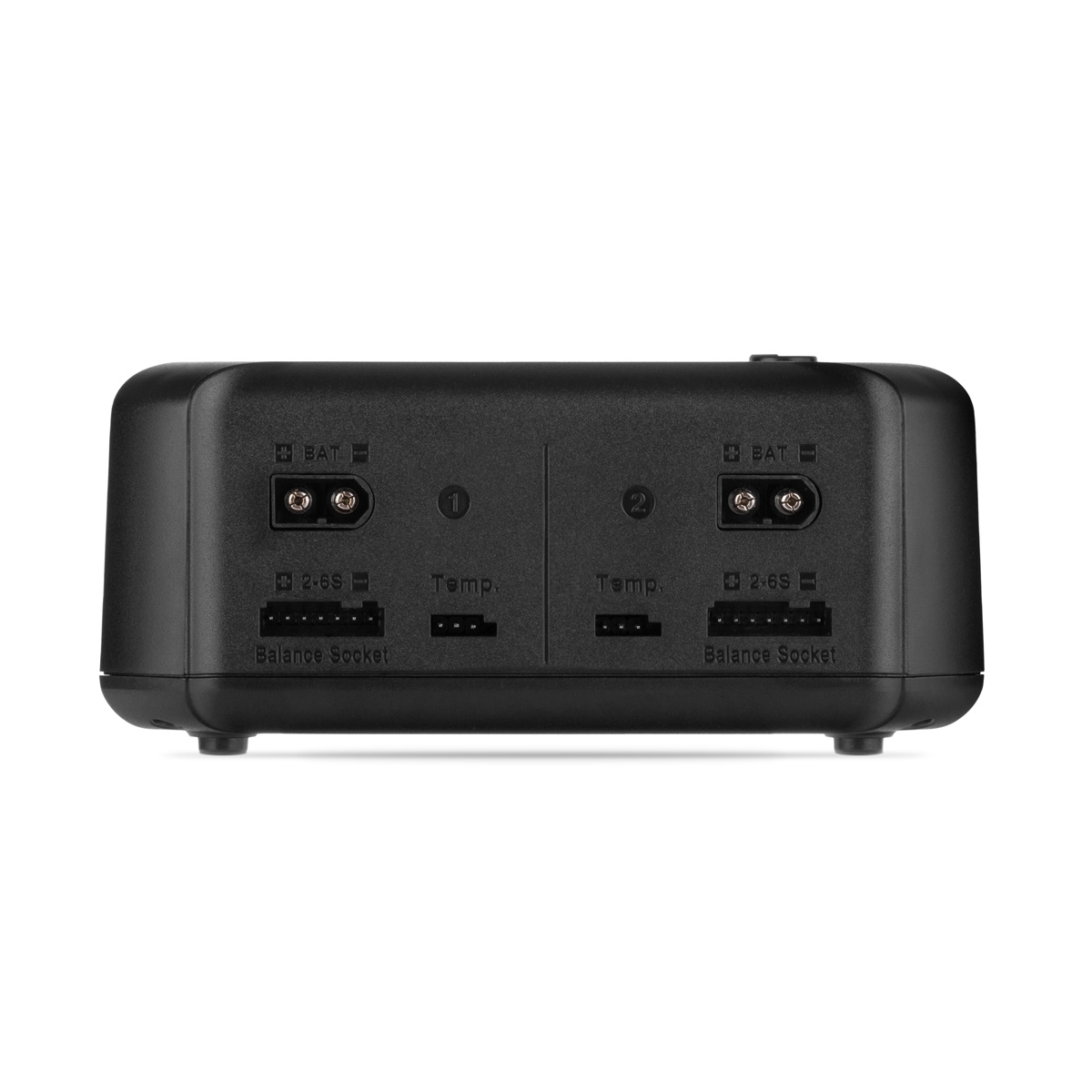

The charger is equipped with XT60 output sockets in both channels and universal sockets for JST-XH service connectors, allowing direct connection of battery power cables and JST-XH service connectors of sets 2–6S – if you use sets with XT60 and JST-XH connectors, you do without charging cables and adapters completely. You can use standard Sky RC or RC System adapters to connect service connectors from other systems.

Specifications:

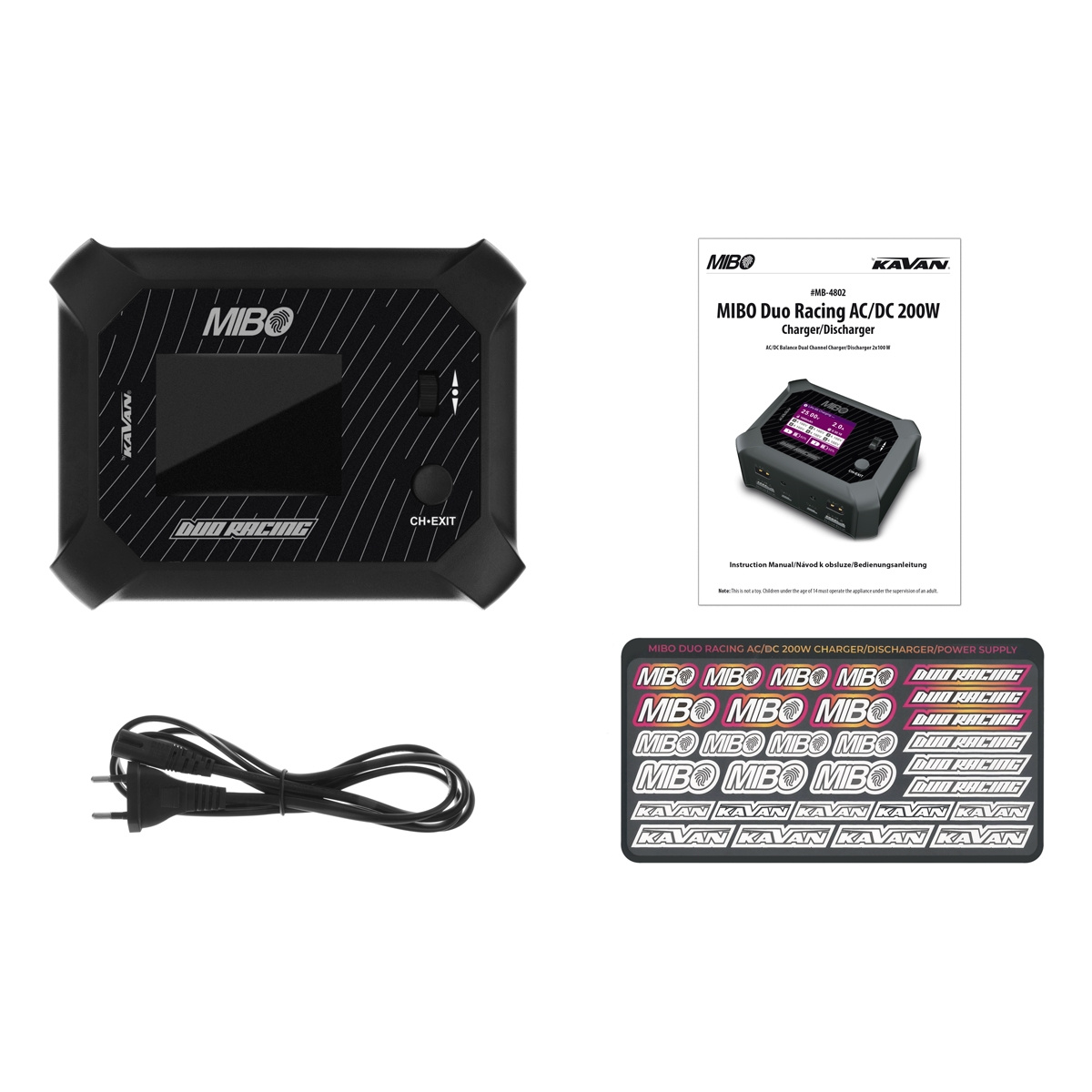

Includes:

• MIBO Duo Racing AC/DC 200W Charger/Discharger
• Cables
• Manual
• Stickers
