Traxxas TRX-4 Chevrolet K10 1979 TQi 1/10 RTR (Copper)
599,70 €
1 disponibles (puede reservarse)
2
¡Personas viendo este producto ahora!
Descripción

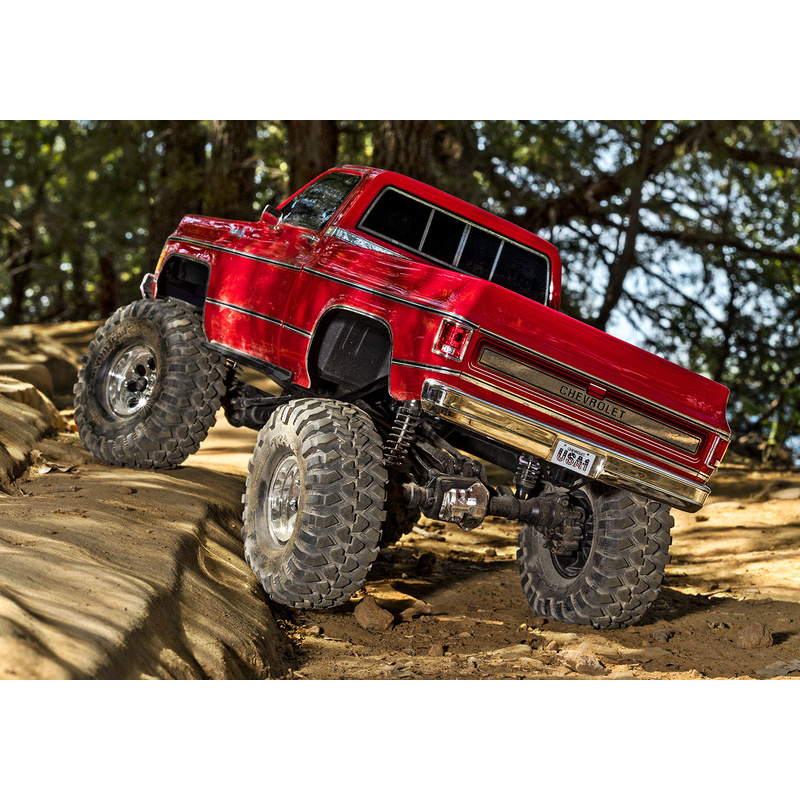

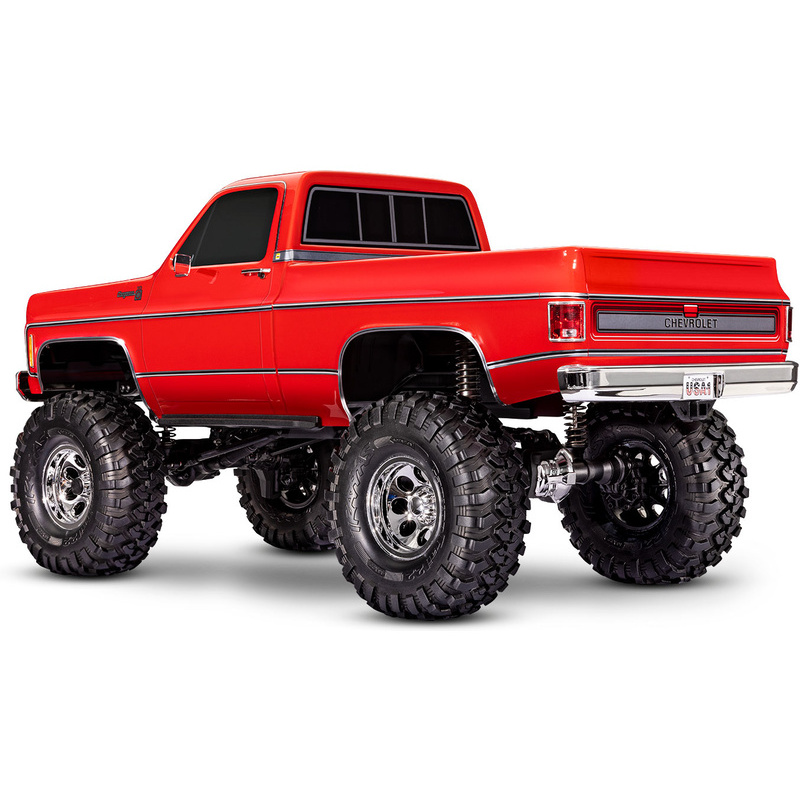

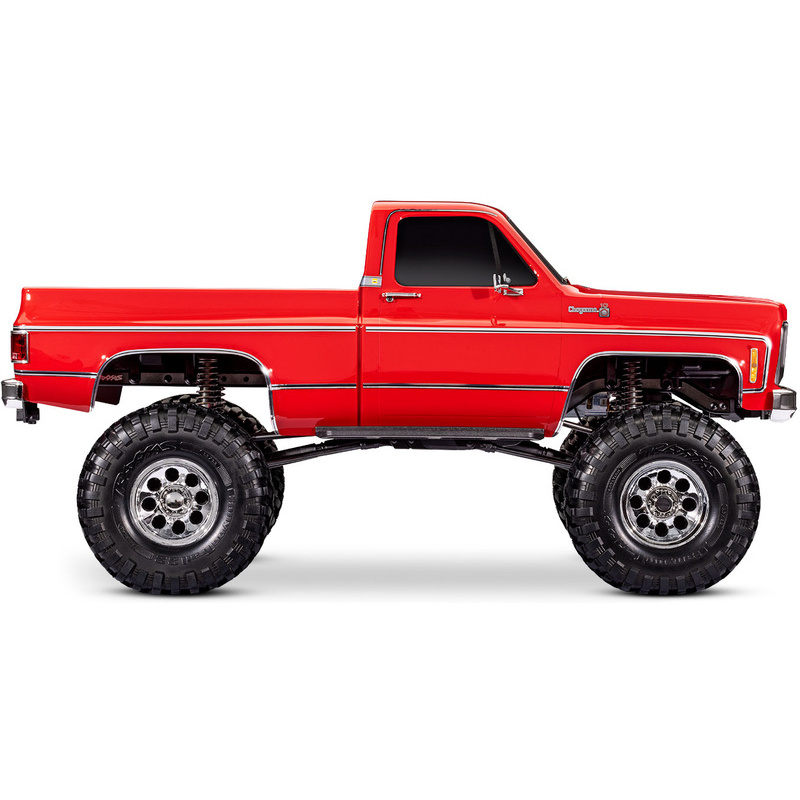

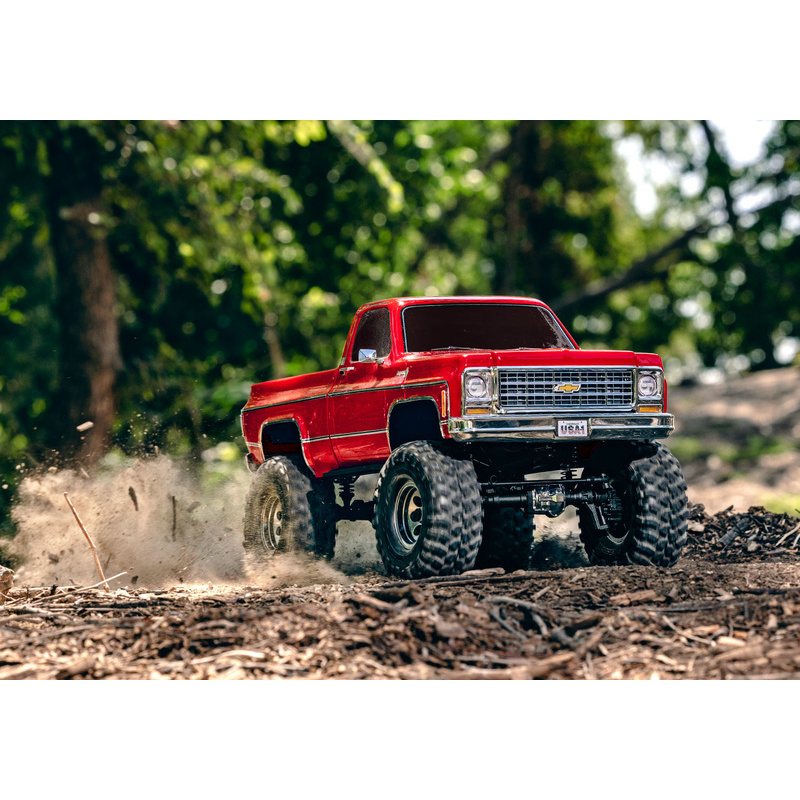

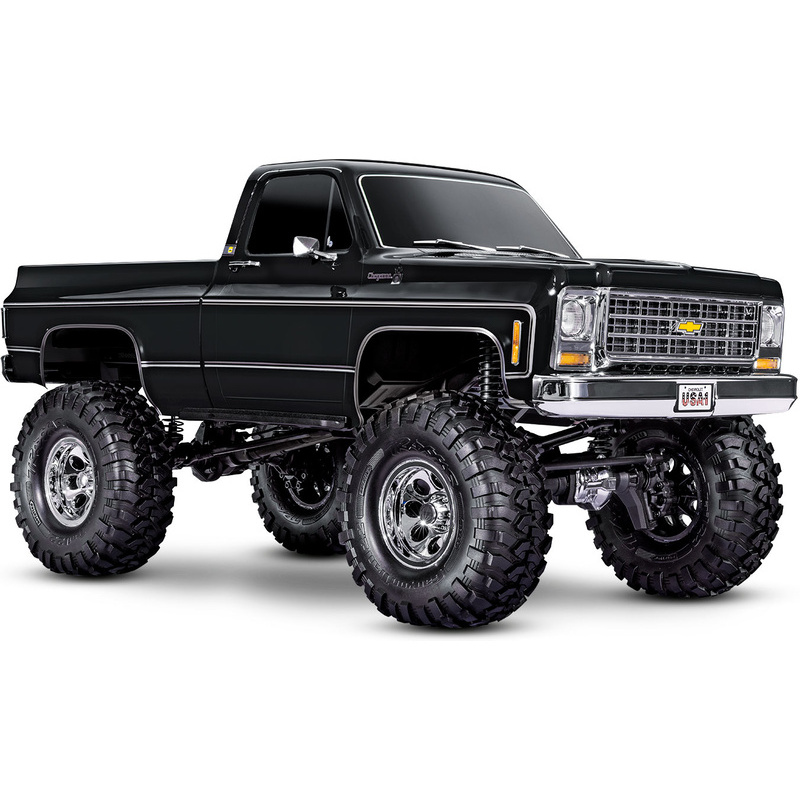

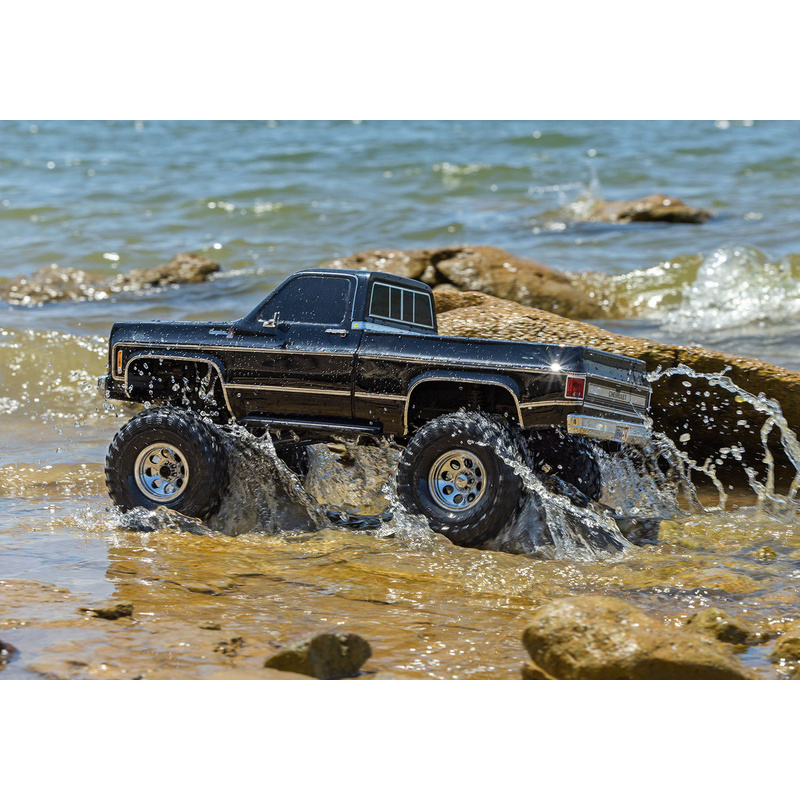

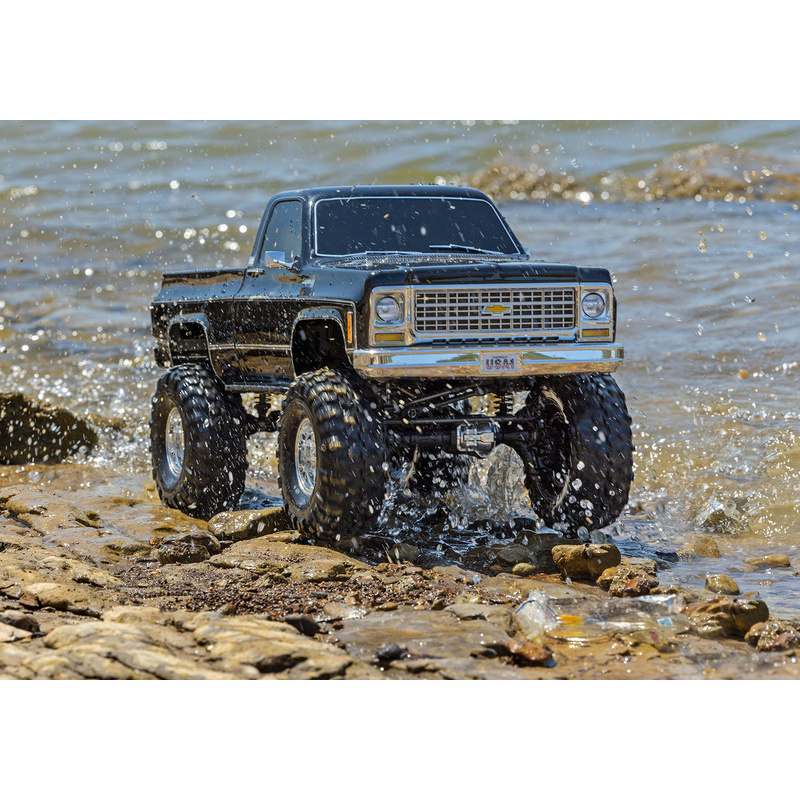

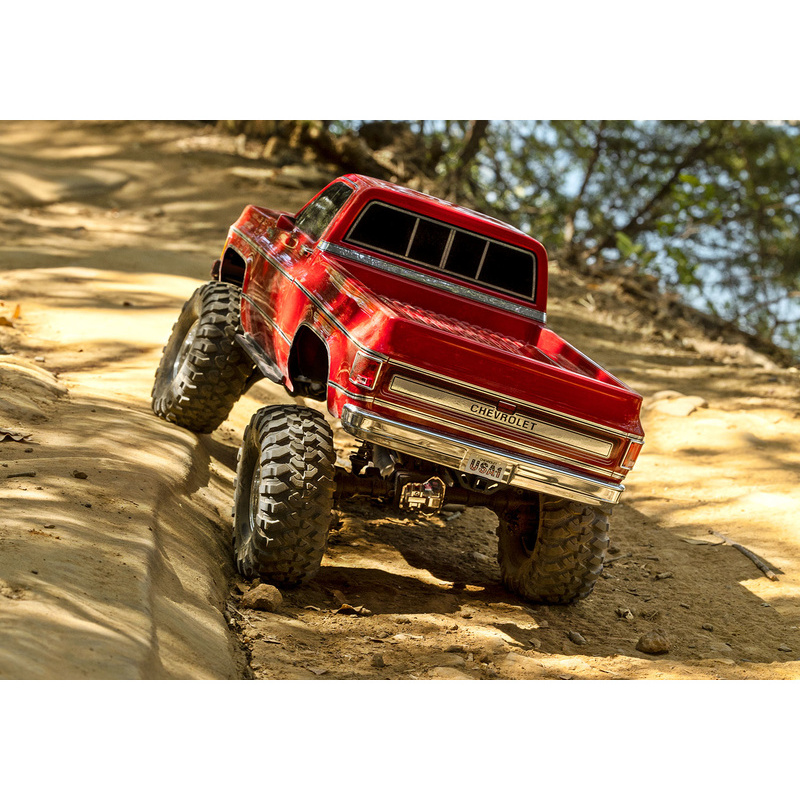

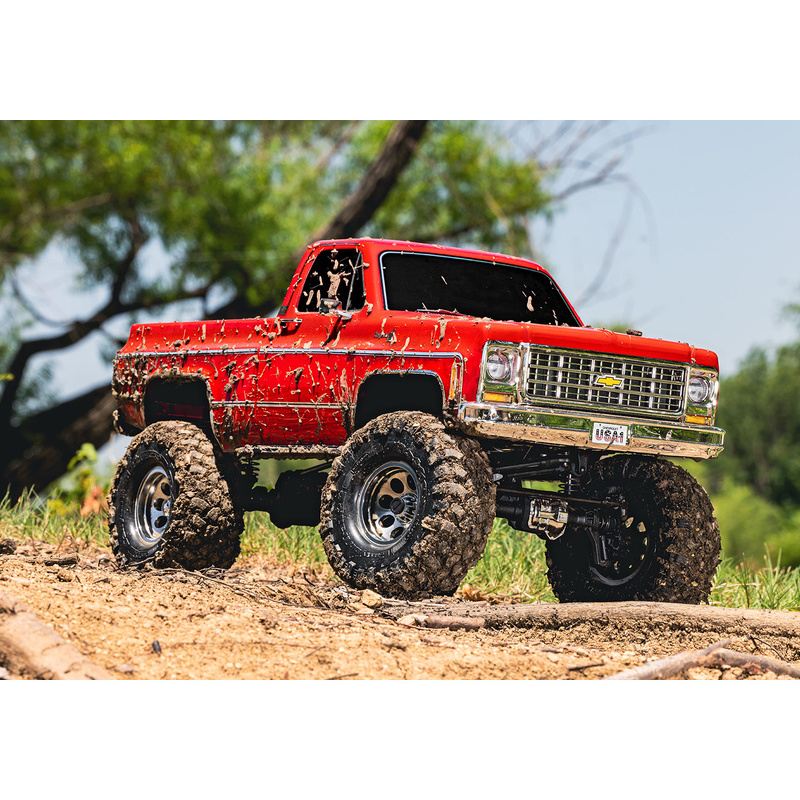

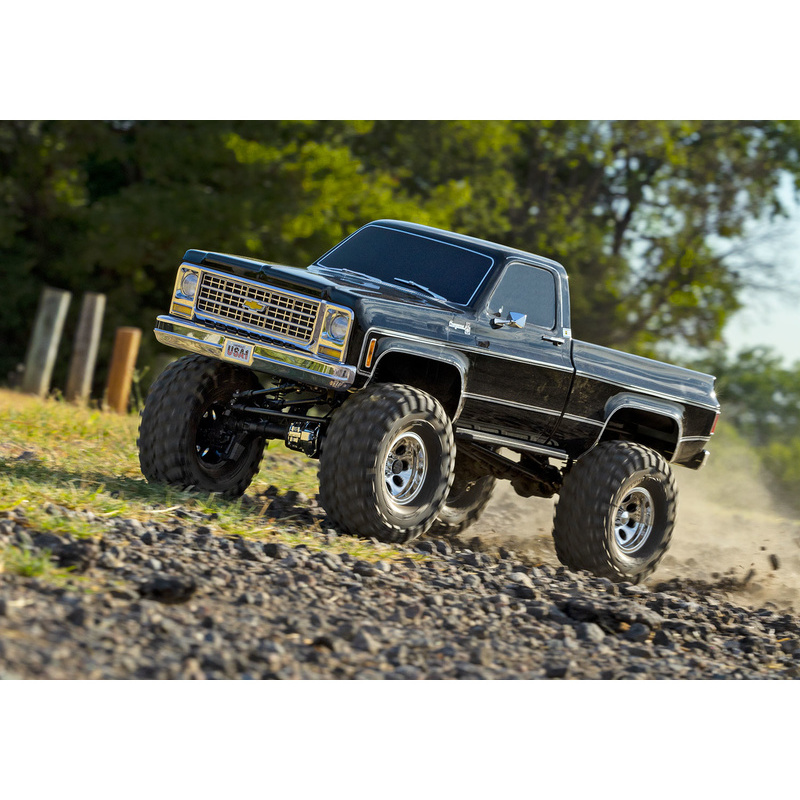

Traxxas elevates scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.
Features:

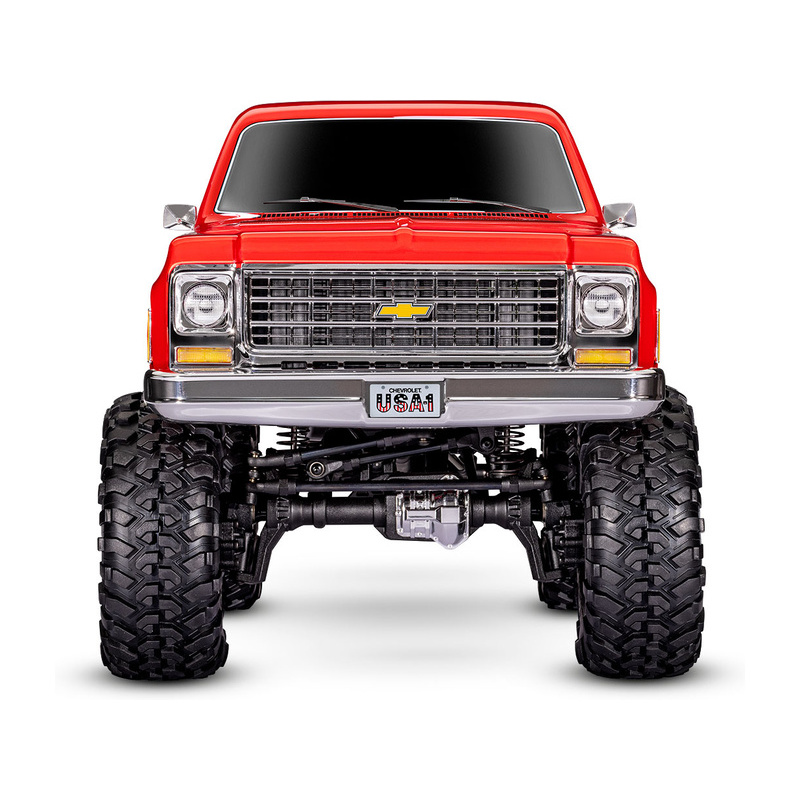

- Officially Licensed 1979 Chevrolet® K10 Pickup Body

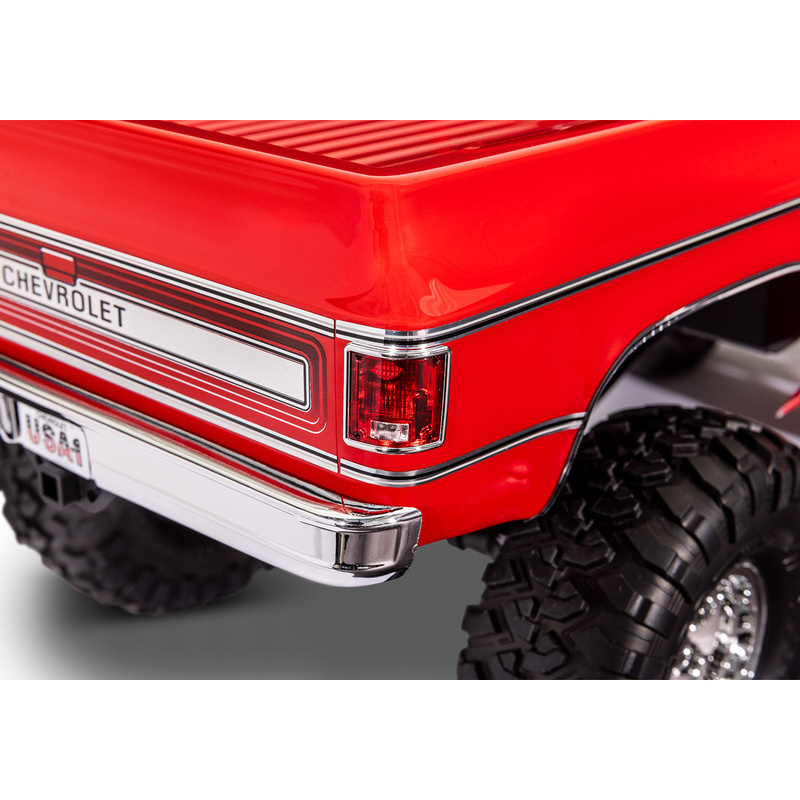

- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights and tail lights
- Authentic decal sheet

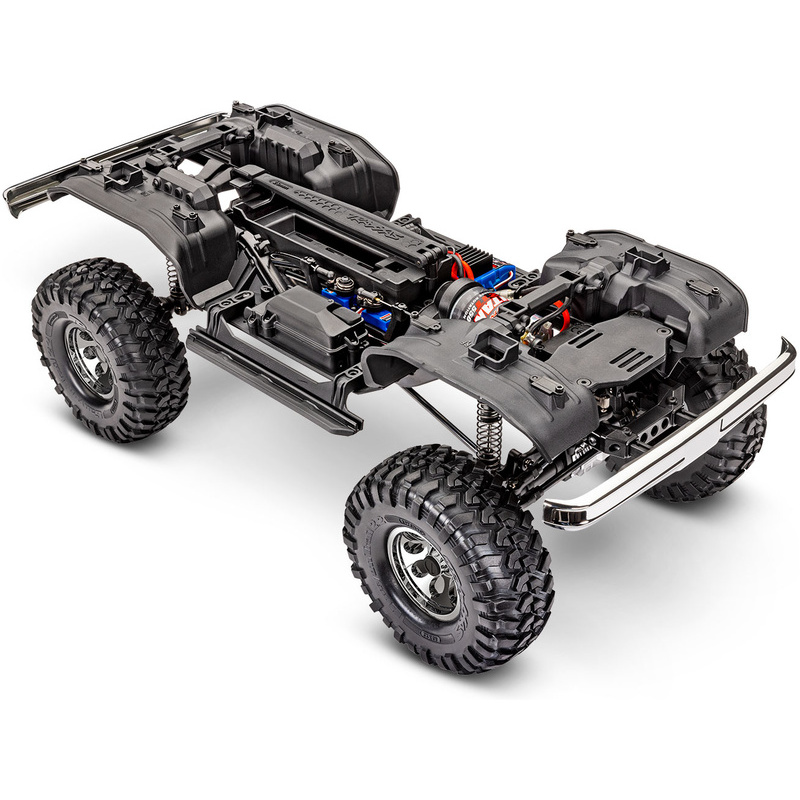

- Full Nylon composite wheel wells and floor pans
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh

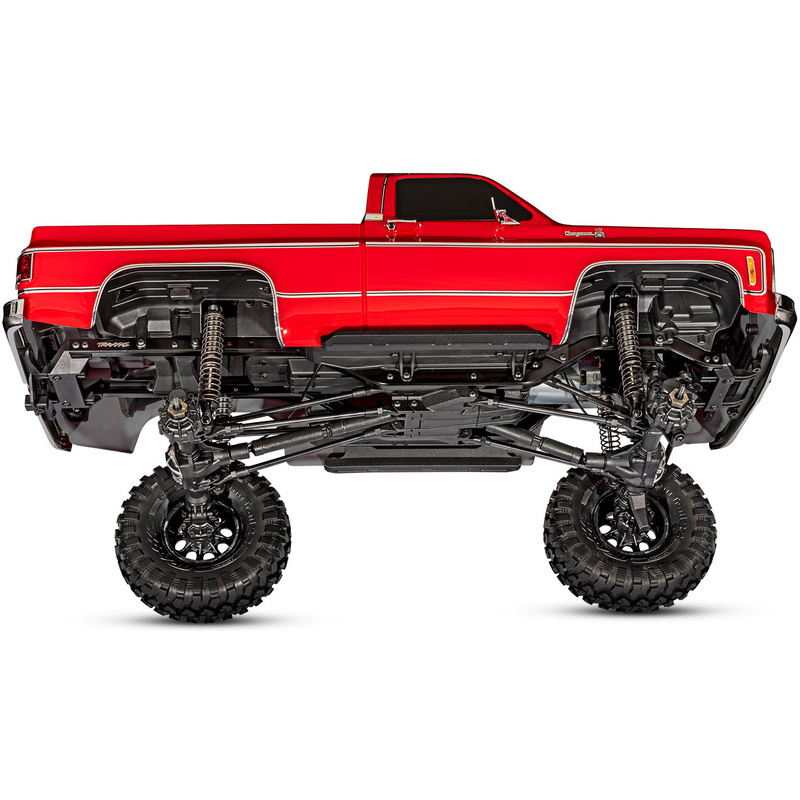

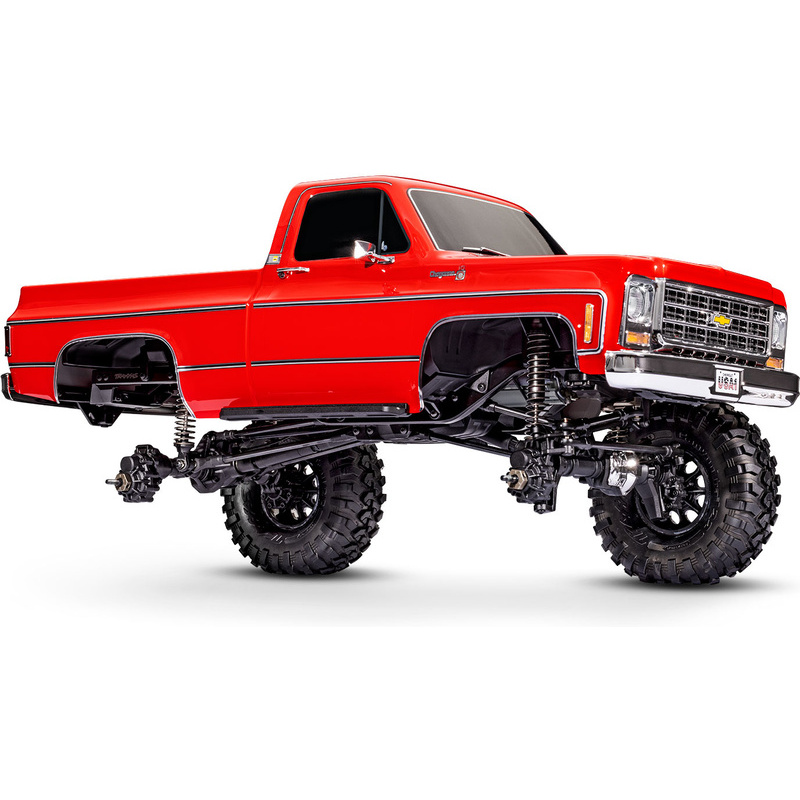

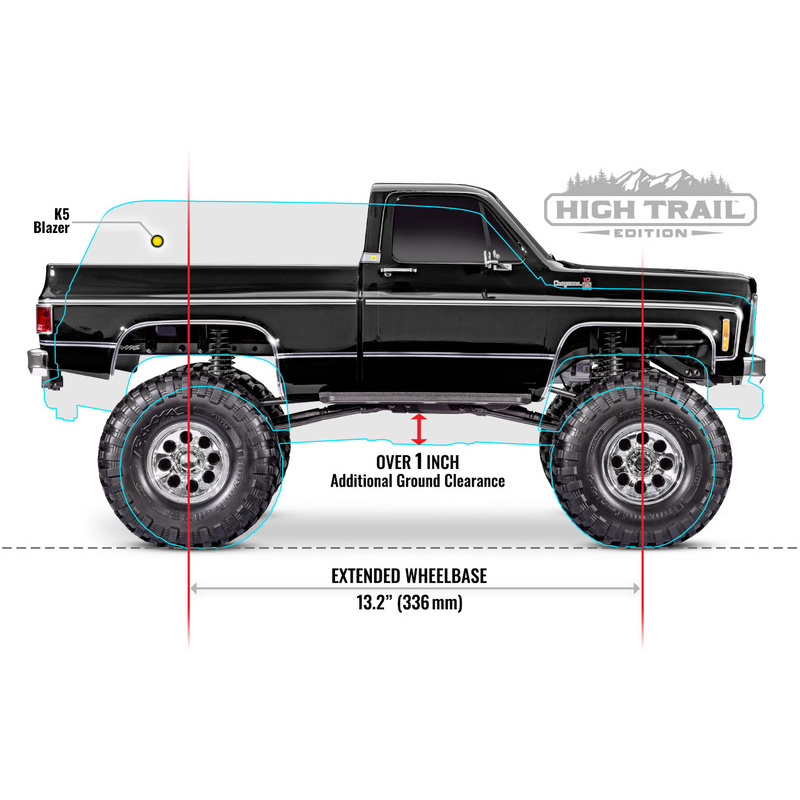

- Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1”
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
- Extended Wheelbase
- Long 336 mm wheelbase for improved stability

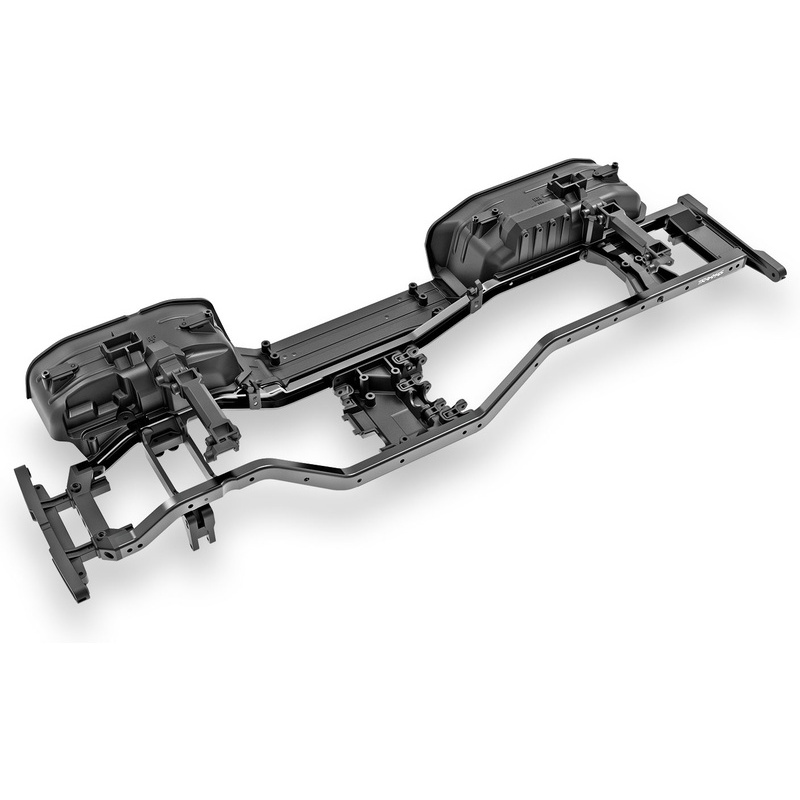

- Full-length 1.5 mm steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails

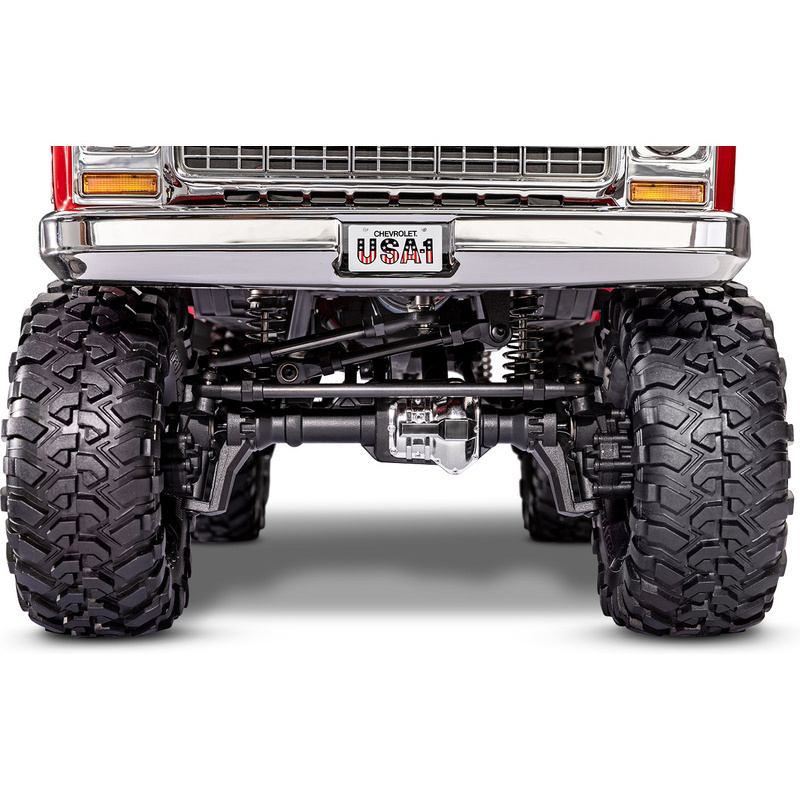

- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

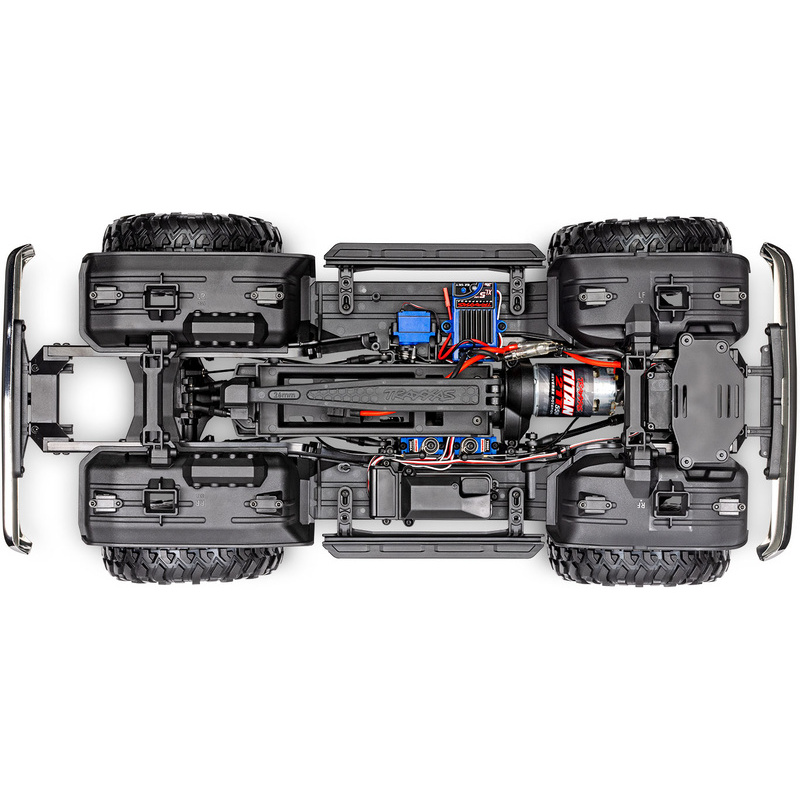

- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

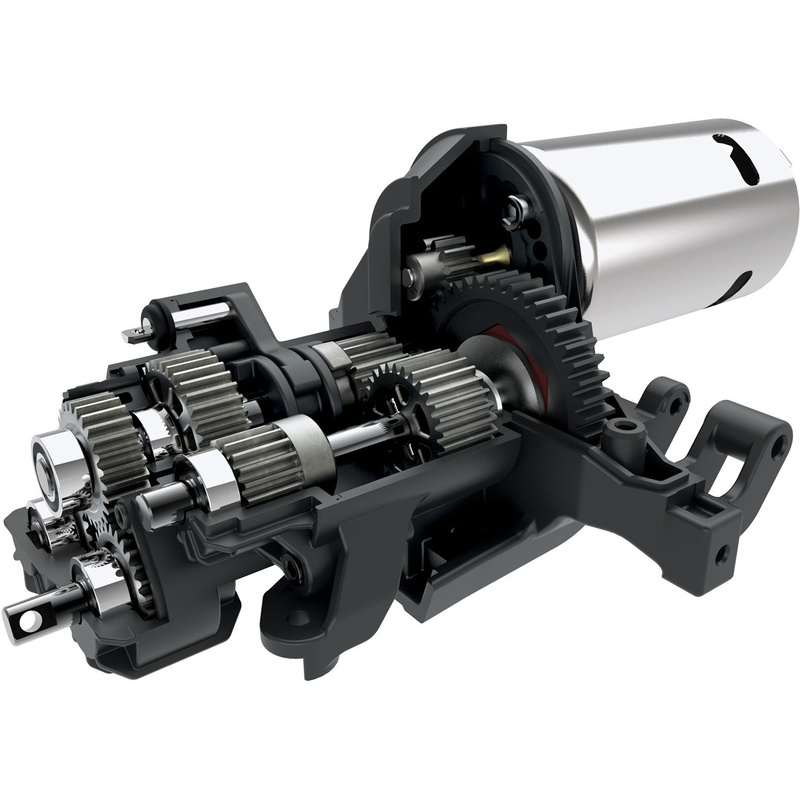

- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering

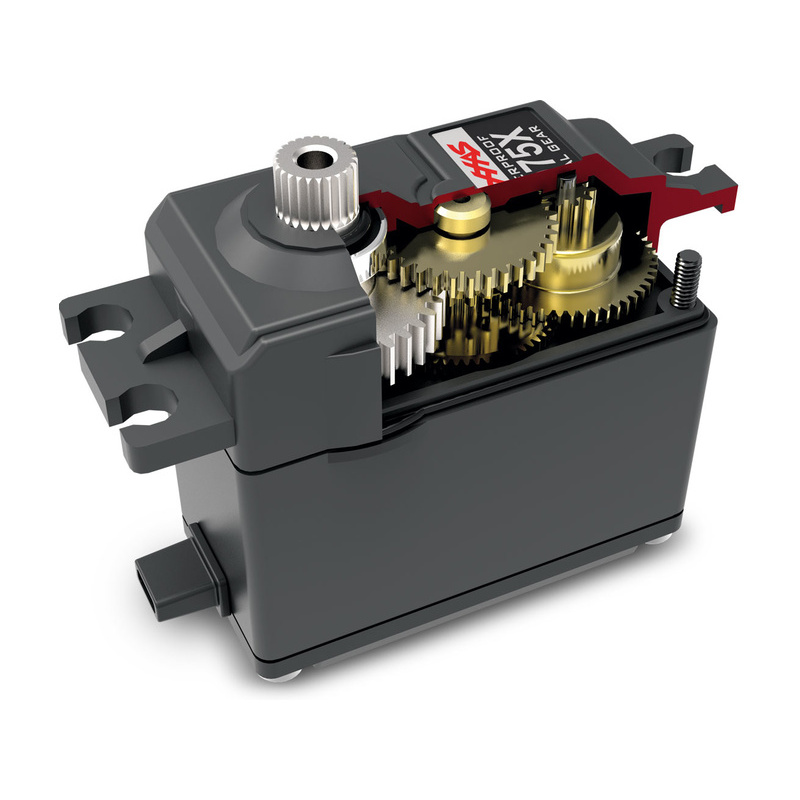

- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steel servo horn
- Steering geometry corrected for bump steer

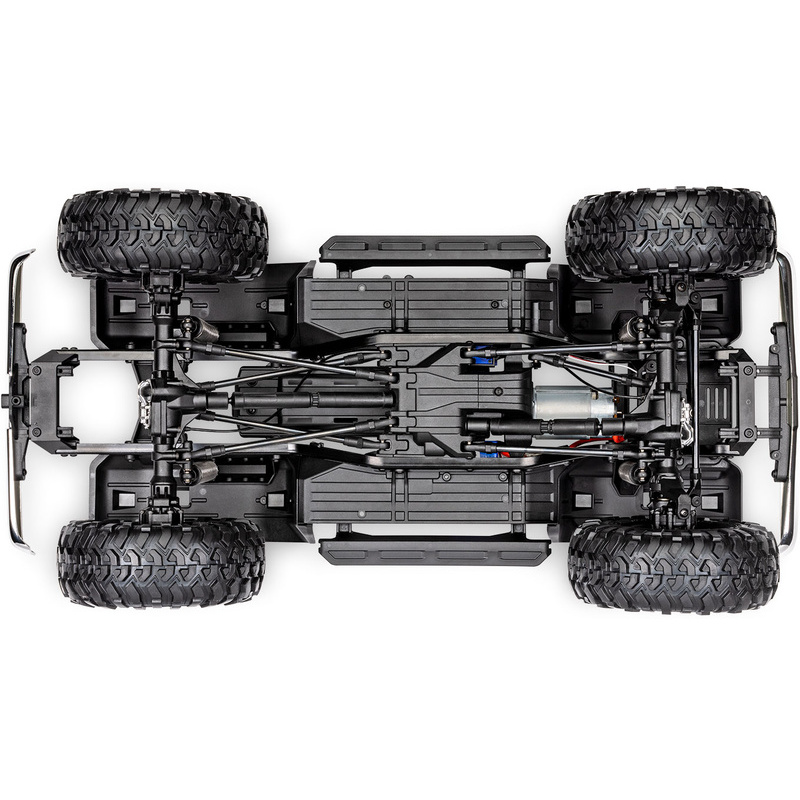

- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls

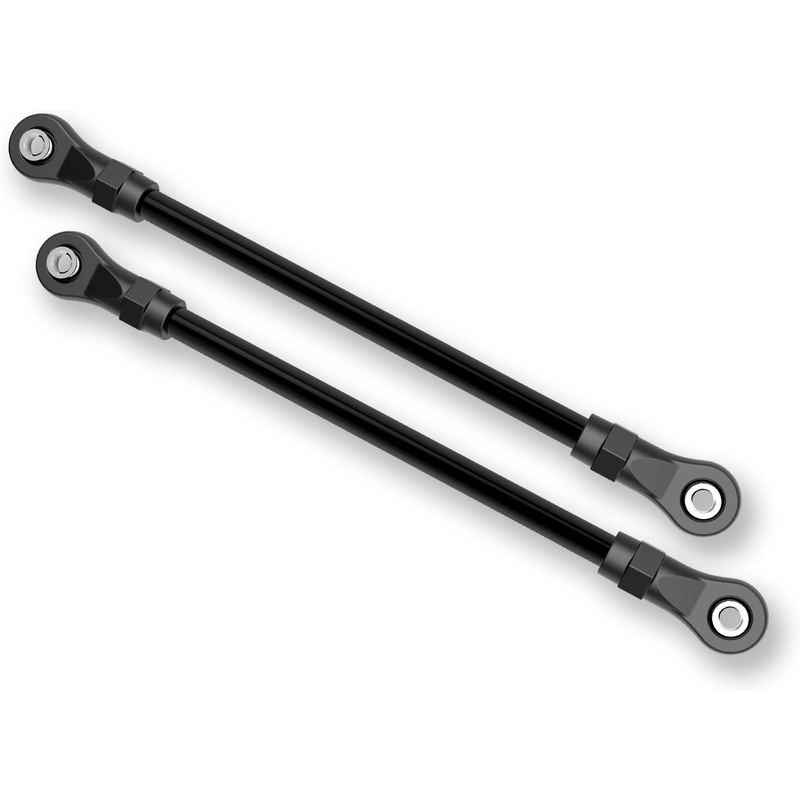

- 5 mm diameter steel link rods with 4 mm threaded ends
- Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals

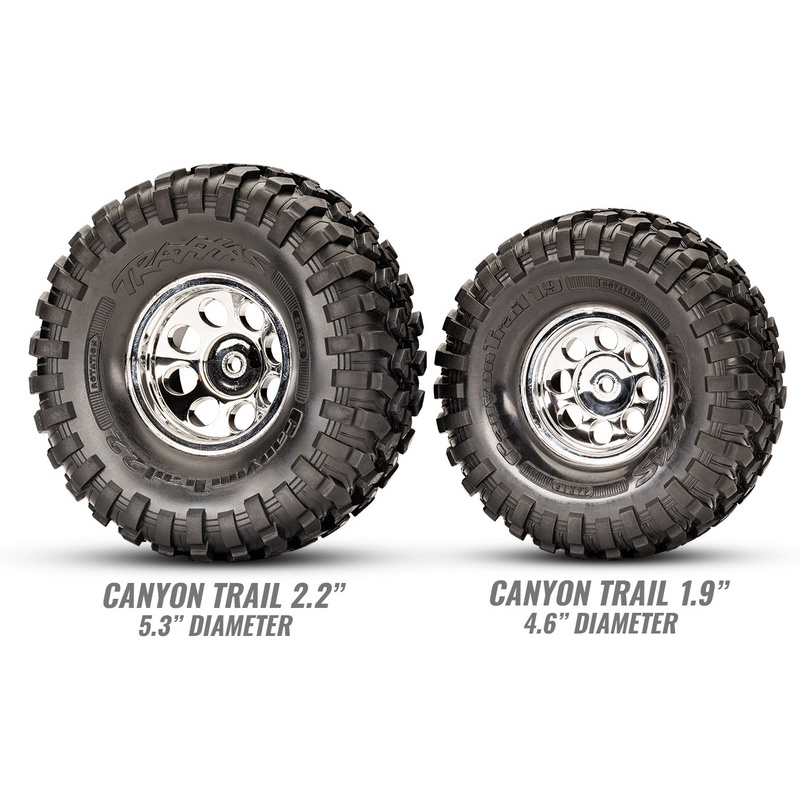

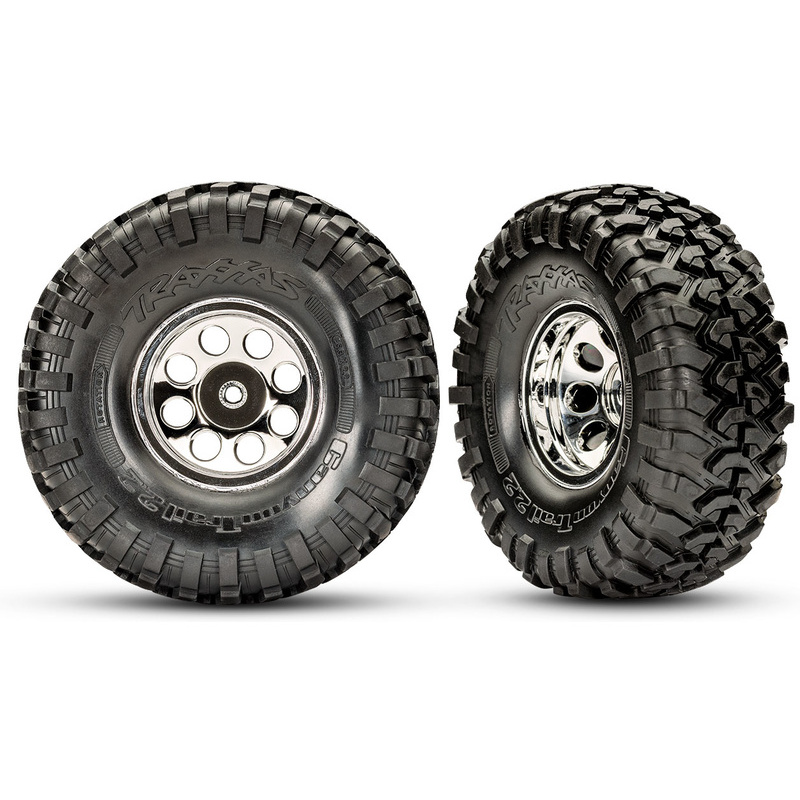

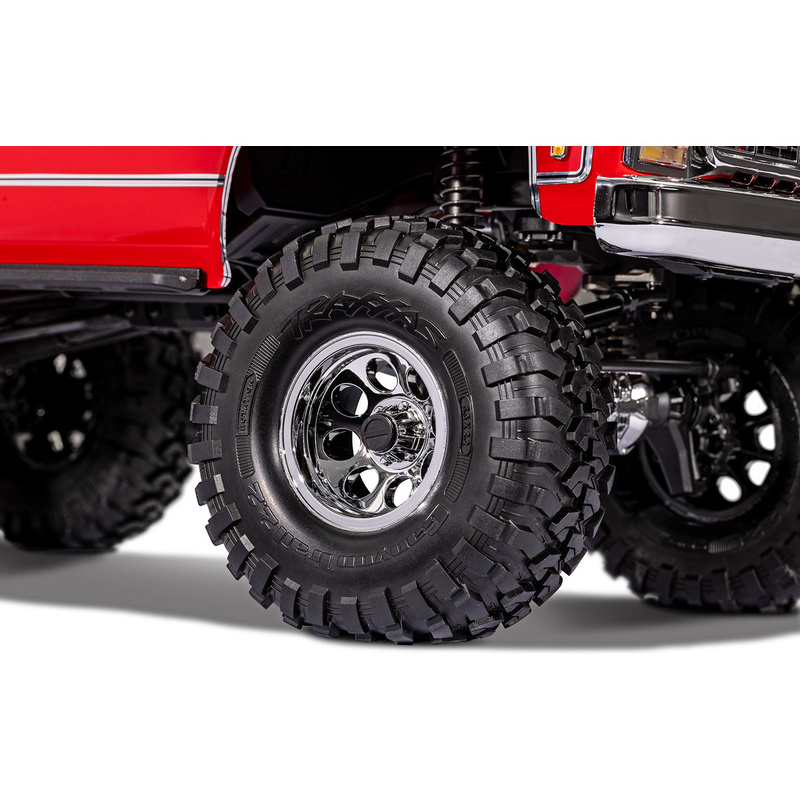

- Oversize Wheels and Tires
- 2.2″ 8-hole chrome mag wheels with hub inserts
- Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Transmitter
- TQi™ 2.4 GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

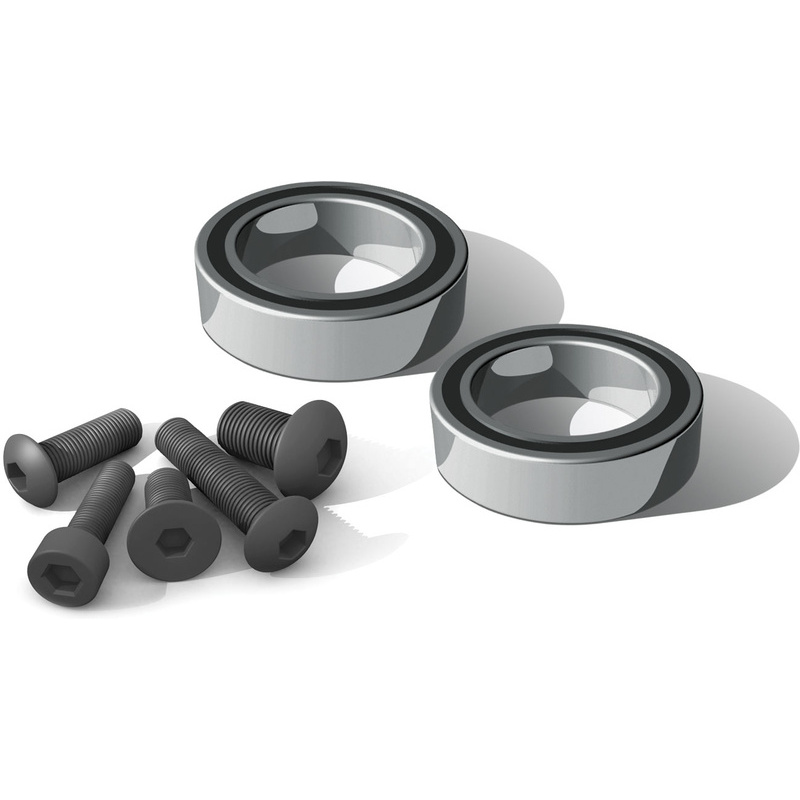

- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
Vehicle Specifications:
| Length: | 22.20 inches (563 mm) |
|---|---|
| Front Track: | 10.60 inches (270 mm) |
| Rear Track: | 10.60 inches (270 mm) |
| Center Ground Clearance: | 4 inches (99 mm) |
| Weight (w/o battery): | 7.38 pounds (3.35 kg) |
| Height (overall): | 10.89 inches (277 mm) |
| Wheelbase: | 13.23 inches (336 mm) |
| Approach Angle: | 70° |
| Departure Angle: | 52° |
| Breakover Angle: | 67° |
| Front Shock Length: | 4.33 inches (110 mm) |
| Rear Shock Length: | 4.33 inches (110 mm) |
| Front Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
| Rear Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
| Front Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
| Rear Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
| Hex Size: | 12 mm |
| Speed Control: | XL-5™ HV |
| Motor (electric): | 21T reverse rotation |
| Transmission: | 2-speed high/low, remote shifting |
| Gear Pitch: | 32 pitch |
| Differential Type: | 4 gear, remote locking |
| Chassis Structure / Material: | Steel ladder frame with Nylon composite crossmembers |
| Brake Type: | Electronic “Hill Hold” |
| Drive System: | Shaft driven 4WD |
| Steering: | Chassis mounted servo |
| Servo: | 2075X metal gear |
| Transmitter: | TQi™ 2.4 GHz 4-channel transmitter |
| Receiver: | 6533 |
| Skill Level: | 1 |
| Battery Tray: | 159 L x 47 W x 23/26 mm H |
Motor Specifications:
| Type: | High-torque brushed motor |
|---|---|
| Size: | 550 |
| Weight: | 13.76 ounces (390 g) |
| Length: | 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (39 mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8 volts |
ESC Specifications:
| Input Voltage: | 6–7 cells NiMH, 2–3s LiPo |
|---|---|
| Case Size: | 1.23″ W x 2.18″ D x 1.04″ H |
| Weight: | 2.6 ounces (74 g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 ohms |
| On Resistance Reverse: | 0.004 ohms |
| Peak Current – Forward: | 100 amps |
| Peak Current – Reverse: | 100 amps |
| Braking Current: | 60 amps |
| Continuous Current: | 18 amps |
| BEC Voltage: | 6.0 volts |
| BEC Current: | 1 amp |
| Power Wire: | 14 gauge / 5″ |
| Input Harness Wire: | 26 gauge / 14.5″ |
| Transistor Type: | MOSFET |
| PWM Frequency: | 1700 Hz |
| Low Voltage Detection (LVD): | 2-stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal shutdown |
| Profile selection: |
|
| Single-button setup: | Traxxas EZ-Set® |
| * Patented | |
Includes:
- TRX-4, Ready-To-Race model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4G Hz radio system with cruise control
- High quality maintenance tools
Required to Complete:
- Batteries – TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger – Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries – Four AA alkaline batteries for the transmitter.
Video:
Información adicional
| Escala | 1/10 |
|---|
