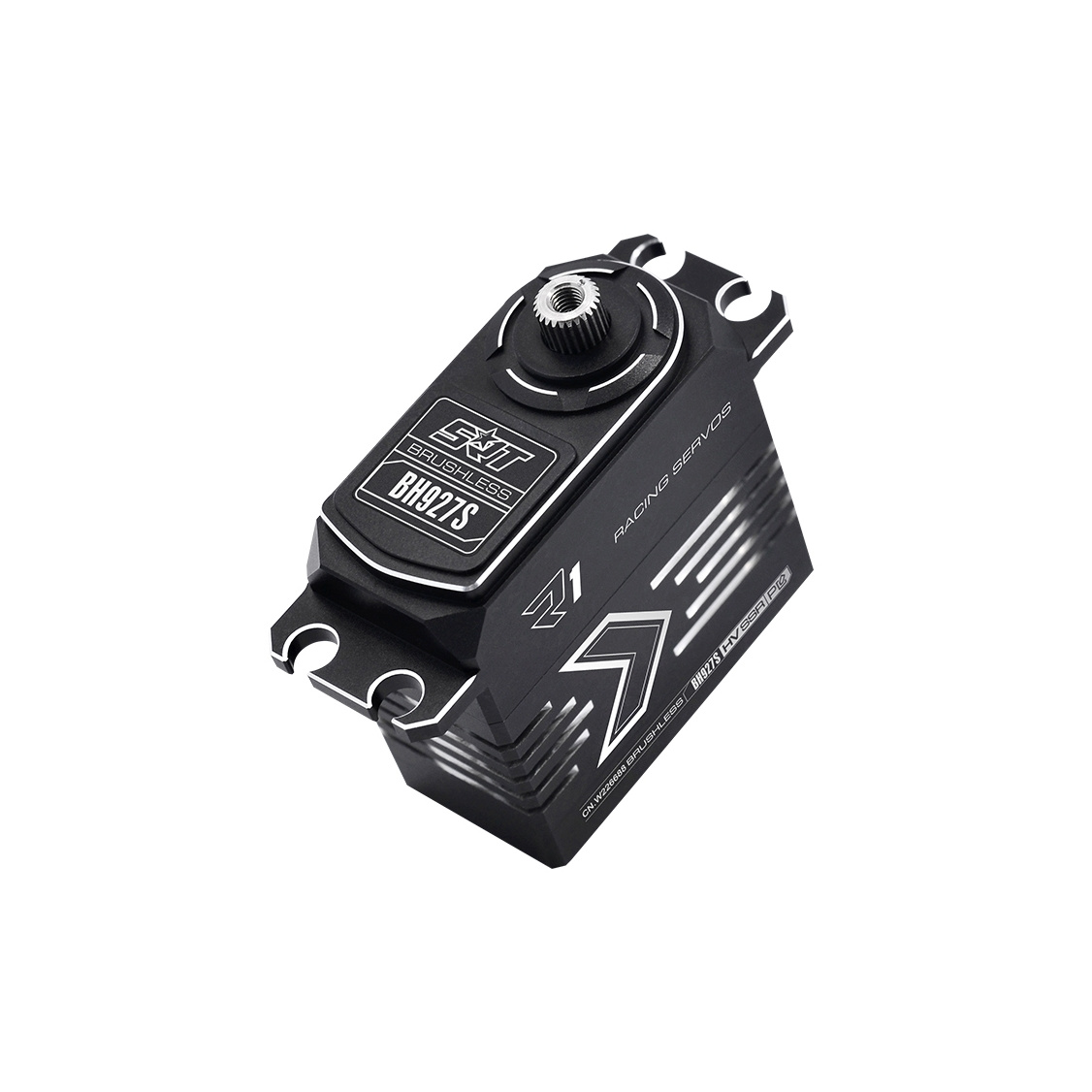

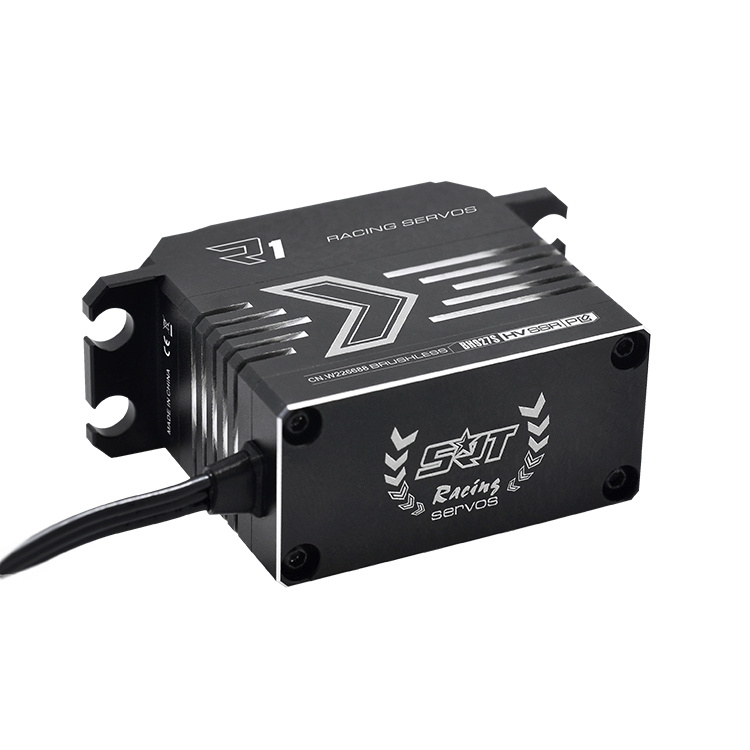

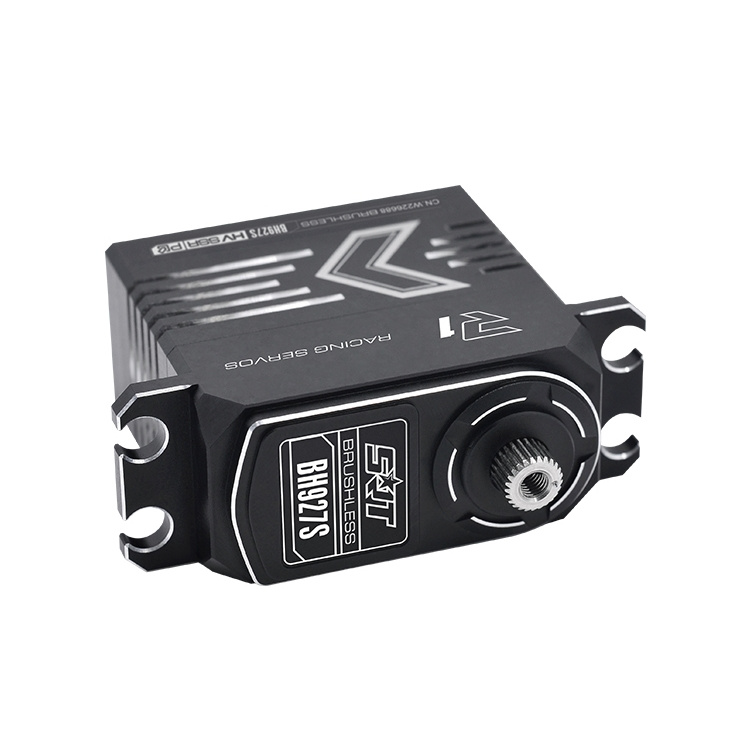

SRT BH927S SSR (0.07s/27.0kg/8.4V) servo brushless

Features:

• Ideal for 1/8 on road and 1/8 off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• NMB dual main bearings
• 25T output shaft
• HD 4096 Resolution
• 2 μsec Dead Band

Specifications:

• type: Digital
• bearing: Dual
• motor Type: Brushless
• gear Type: Metal
• gear Material: Titanium & Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.10 sec/60 degrees at no load
• operating speed (7.4v): 0.075 sec/60 degrees at no load
• operating speed (8.4v): 0.07 sec/60 degrees at no load
• stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
• stall torque (7.4v): 23.0kg.cm (319.4 oz/in)
• stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
• potentiometer drive: direct drive

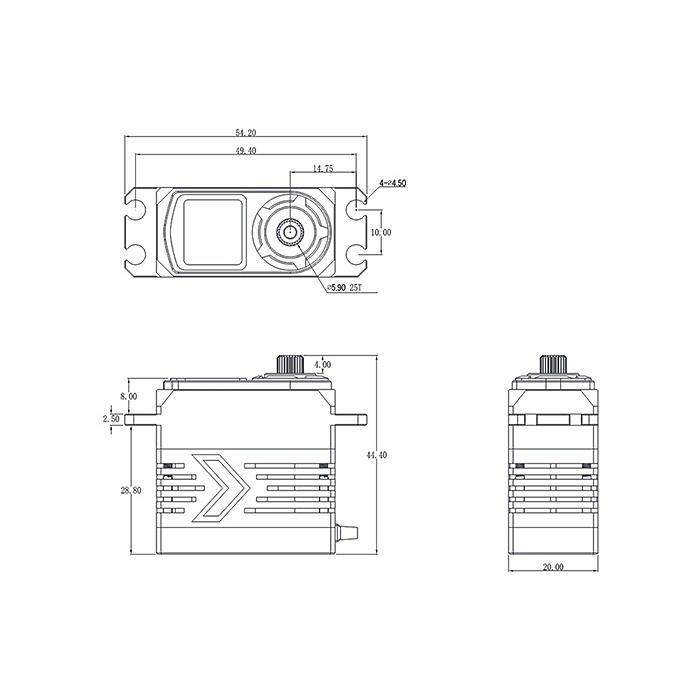

• dimensions: 40x20x38.0 mm /1.57×0.79×1.49 in
• weight: 70.0g (2.47 oz)
• connector wire length: jr 250 mm
